Hydrogen Plant Implementation
High Pressure Solutions For Hydrogen Application

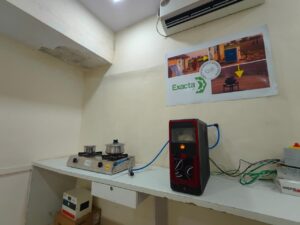

EXACTA is at the forefront in providing high-pressure equipment like valves, fittings, and engineering and connecting of paint for hydrogen distribution to support our customers as they incorporate hydrogen in their zero-carbon energy strategies.
We lead in delivering safe and reliable products and services to handle the high pressures and extreme temperatures associated with handling hydrogen.
Erection And Commissioning Services
With our experienced team of engineers and technicians, we ensure efficient planning, skilled installation, rigorous testing and calibration, seamless system integration, and comprehensive documentation and training. Whether you require installation for a new valve system or commissioning services for an existing one, our commitment to quality and customer satisfaction guarantees optimal performance and long-term reliability. Contact us today to discuss your specific needs and let us handle the erection and commissioning of your valve systems with expertise and precision.
Standard Hydrogen Products
EXACTA was part of the EPC team of the first pilot H2 dispensing station at IOCL, Baroda. Where our scope was the erection & commissioning of high-pressure lines (at 650 bars). As demand has continued to increase, we have committed the resources to develop a variety of products for use with hydrogen, all either in stock or available with short lead times. We have engineered our high-pressure valve stems, packing, and associated soft goods to meet the unique requirements of hydrogen. The standard material for all EXACTA valve bodies and fittings is 316 stainless steel, which is hydrogen compatible. In addition, we offer a range of special materials such as Hastelloy and Monel with fugitive emission tests and high-pressure gas tests, we assure a reliable valve.
HIGH PRESSURE CONE & THREAD CONNECTIONS
- High pressure valves up to 20,000 psi
- Trunnion style severe duty ball valves
- Metal and soft seat relief valves
- Block and bleed needle and ball valves
- Air operated valves for remote operation
- Fittings, tubing and accessories
EXACTA hydrogen products use a high pressure coned and threaded connection which accommodates the high temperatures, high pressures and extreme conditions common in these applications
A. 20,000 psi Service – Two Way Straight Valves
| Tubing | Psi | Conn. | Orifice | Cv | D | E | F | G | H | J | K | L | Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4″ O.D. | 20,000 | MP4 | 1/8″ | 0.17 | 4-3/8″ | 2″ | 3/8″ | 13/16″ | 2″ | 3/8″ | 1-1/4″ | 7/32″ | 3/4″ |
| 3/8″ O.D. | 20,000 | MP6 | 13/64″ | 0.45 | 4-3/8″ | 2″ | 3/8″ | 13/16″ | 2″ | 3/8″ | 1-1/4″ | 7/32″ | 3/4″ |
| 9/16″ O.D. | 20,000 | MP9 | 5/16″ | 1.12 | 6-1/8″ | 2-1/2″ | 1/2″ | 1-/8″ | 2-7/8″ | 1/2″ | 1-3/8″ | 11/32″ | 1″ |
| 3/4″ O.D. | 20,000 | MP12 | 7/16″ | 2.29 | 7″ | 3″ | 3/4″ | 1-1/2″ | 3-3/4″ | 5/8″ | 1-3/4″ | 7/16″ | 1-3/8″ |
| 1″ O.D. | 20,000 | MP16 | 9/16″ | 3.86 | 8-27/64″ | 4-1/8″ | 7/8″ | 1-13/16″ | 4-5/8″ | 1-1/8″ | 2-1/2″ | 9/16″ | 1-3/4″ |
| 3/4″ O.D. | 10,000 | MP12 | 33/64″ | 3.65 | 7″ | 3″ | 3/4″ | 11/2″ | 3-3/4″ | 5/8″ | 1-3/4″ | 7/16″ | 1-3/8″ |
HIGH PRESSURE VALVES
| Tubing | psi | Conn. | Orifice | Cv | D | E | F | G | H | J | K | L | Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/8″ O.D. | 30,000 | HP2 | 1/16″ | 0.04 | 3-1/4″ | 1-1/2″ | 11/16″ | 15/16″ | 1-13/16″ | 5/16″ | 7/8″ | 9/64″ | 3/4″ |
| 1/4″ O.D. | 30,000 | HP4 | 3/32″ | 0.09 | 5-3/16″ | 2″ | 5/8″ | 1″ | 2-7/16″ | 1/2″ | 1-3/8″ | 7/32″ | 1″ |
| 3/8″ O.D. | 30,000 | HP6 | 1/8″ | 0.15 | 5-3/16″ | 2″ | 5/8″ | 1″ | 2-7/16″ | 1/2″ | 1-3/8″ | 7/32″ | 1″ |
| 9/16″ O.D. | 30,000 | HP9 | 1/8″ | 0.15 | 5-5/8″ | 2-5/8″ | 1″ | 1-7/16″ | 2-7/8″ | 1/2″ | 1-3/8″ | 7/32″ | 1-1/2″ |
| Tubing | psi | Conn. | Orifice | Cv | D | E | F | G | H | J | K | L | Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/8″ O.D. | 30,000 | HP2 | 1/16″ | 0.06 | 3-1/4″ | 11/2″ | – | 15/16″ | 1-13/16″ | 5/16″ | 7/8″ | 9/64″ | 3/4″ |
| 1/4″ O.D. | 30,000 | HP4 | 3/32″ | 0.135 | 5-3/16″ | 2″ | – | 1″ | 2-7/16″ | 1/2″ | 1-3/8″ | 7/32″ | 1″ |
| 3/8″ O.D. | 30,000 | HP6 | 1/8″ | 0.225 | 5-9/16″ | 2″ | – | 1-3/8″ | 2-13/16″ | 1/2″ | 1-3/8″ | 7/32″ | 1″ |
| 9/16″ O.D. | 30,000 | HP9 | 1/8″ | 0.225 | 5-5/8″ | 25/8″ | – | 1-7/16″ | 2-7/8″ | 1/2″ | 1-3/8″ | 7/32″ | 1-1/2″ |
High Pressure Fittings
GLANDS/COLLARS/PLUGS ELBOWS/ TEES/CROSSES
| Tube Size | GLAND |
|---|---|
| 1/4" |  |
| 3/8" | |
| 9/16" | |
| 3/4" | |
| 1" | |
| 1 1/2" |
| Tube Size | COLLAR |
|---|---|
| 1/4" |  |
| 3/8" | |
| 9/16" | |
| 3/4" | |
| 1" | |
| 11/2" |
| Tube Size | PLUG |
|---|---|
| 1/4" |  |
| 3/8" | |
| 9/16" | |
| 3/4" | |
| 1" | |
| 11/2" |
| Pressure Rating psi | Connections | A-B | E | F | G | H | Thickness |
|---|---|---|---|---|---|---|---|
| 20,000 | 3/4″ O.D. TUBE | EP12 | 21/4″ | 2 1/4″ | 1 1/2″ | 1 1/2″ | 1 3/8″ |
| 20,000 | 1″ O.D. TUBE | EP16 | 3″ | 3″ | 21/16″ | 21/16″ | 1 3/4″ |
| 15,000 | 11/2″ O.D. TUBE | EP24 | 53/4″ | 4″ | 2 7/8″ | 27/8″ | 2 1/4″ |
| 20,000 | 1/4″ O.D. TUBE | EP4 | 13/16″ | 1″ | 7/8″ | 11/16″ | 5/8″ |
| 20,000 | 3/8″ O.D. TUBE | EP6 | 13/8″ | 1 3/8″ | 1″ | 1″ | 3/4″ |
| 20,000 | 9/16″ O.D. TUBE | EP9 | 13/4″ | 1 3/4″ | 1 1/4″ | 1 1/4″ | 1″ |
| Pressure Rating Psi | Connections | A-B-C | E | F | G | H | Thickness |
|---|---|---|---|---|---|---|---|
| 20,000 | 1/4″ O.D. TUBE | EP4 | 1 3/4″ | 1″ | 7/8″ | 11/16″ | 5/8″ |
| 20,000 | 3/8″ O.D. TUBE | EP6 | 2″ | 1 3/8″ | 1″ | 1″ | 3/4″ |
| 20,000 | 9/16″ O.D. TUBE | EP9 | 2 1/2″ | 1 3/4″ | 1 1/4″ | 1 1/4″ | 1″ |
| 20,000 | 3/4″ O.D TUBE | EP12 | 3″ | 2 1/4″ | 1 1/2″ | 1 1/2″ | 1 3/8″ |
| 20,000 | 1″ O.D. TUBE | EP16 | 4 1/8″ | 3″ | 21/16″ | 2 1/16″ | 1 3/4″ |
| 15,000 | 1 1/2″ O.D. TUBE | EP24 | 5 3/4″ | 4″ | 2 7/8″ | 2 7/8″ | 2 1/4″ |
| Pressure Rating Psi | Connections | A-B-C-D | E | F | G | H | Thickness |
|---|---|---|---|---|---|---|---|
| 20,000 | 1/4″ O.D TUBE | EP4 | 1 3/4″ | 1 3/8″ | 7/8″ | 11/16″ | 5/8″ |
| 20,000 | 3/8″ O.D TUBE | EP6 | 2″ | 2″ | 1″ | 1″ | 3/4″ |
| 20,000 | 9/16″ O.D TUBE | EP9 | 2 1/2″ | 2 1/2″ | 1 1/4″ | 1 1/4″ | 1″ |
| 20,000 | 3/4″ O.D. TUBE | EP12 | 3″ | 3″ | 1 1/2″ | 1 1/2″ | 1 3/8″ |
| 20,000 | 1″ O.D. TUBE | EP16 | 4 1/8″ | 4 1/8″ | 21/16″ | 21/16″ | 1 3/4″ |
| 15,000 | 11/2″ O.D TUBE | EP24 | 5 3/4″ | 5 3/4″ | 2 7/8″ | 2 7/8″ | 2 1/4″ |
